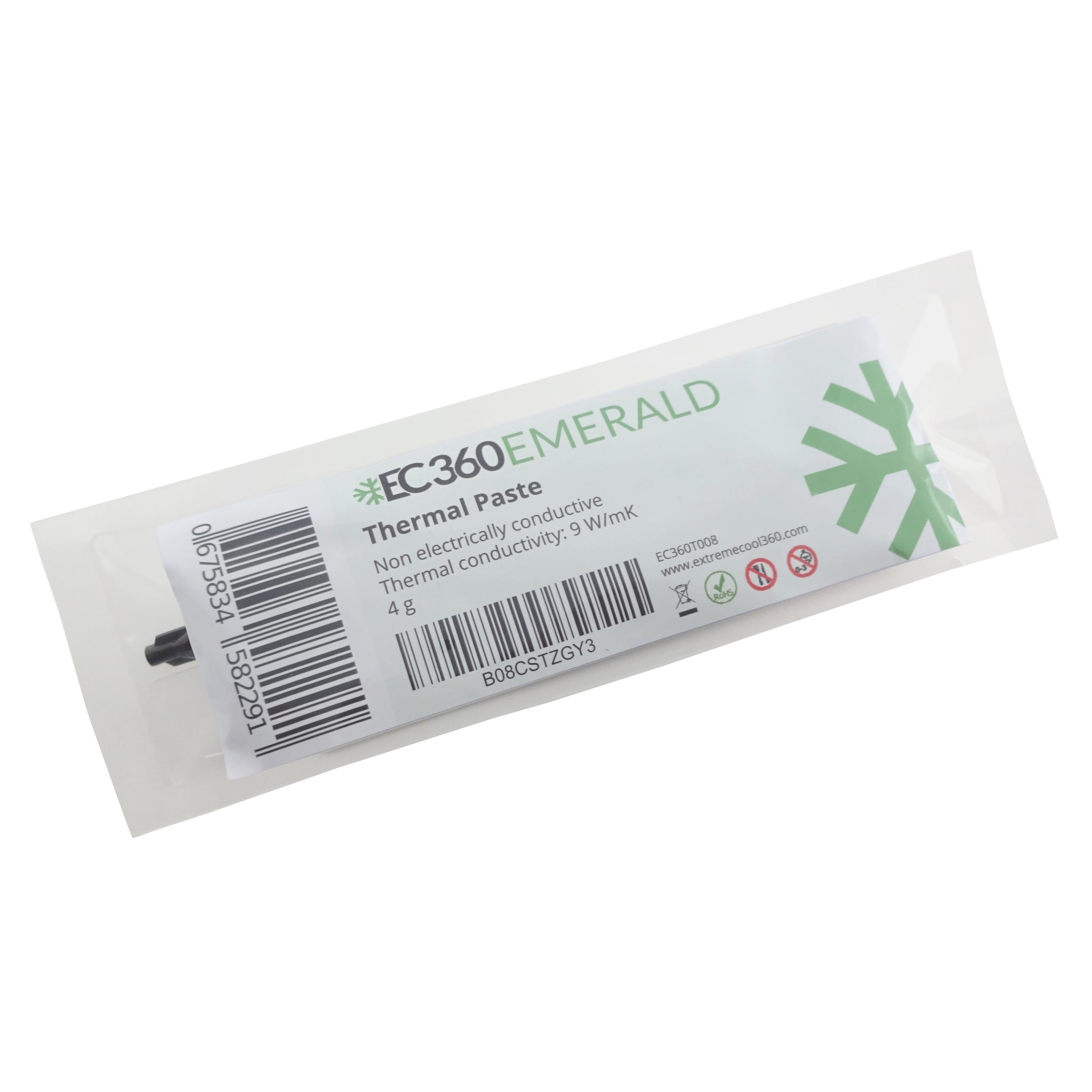

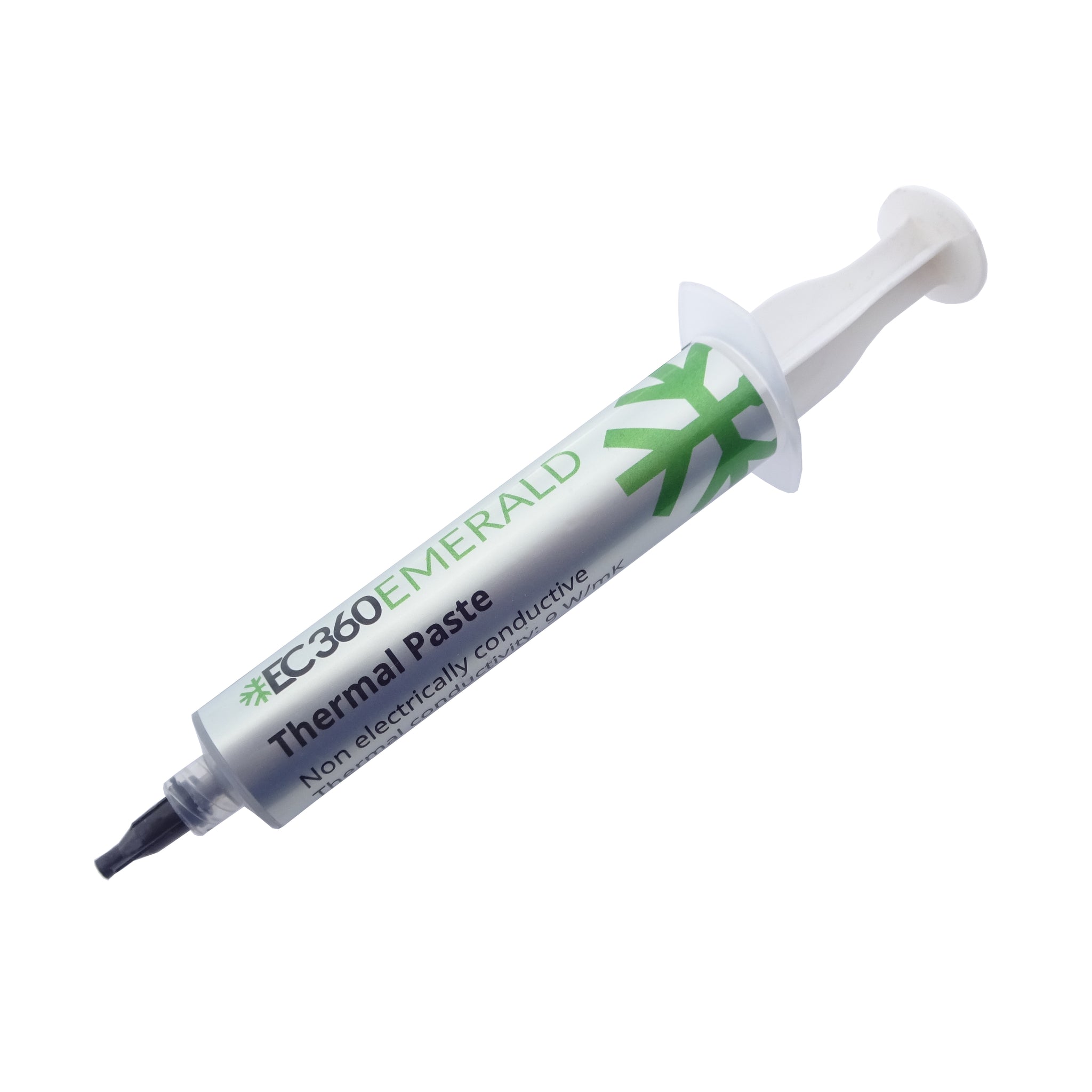

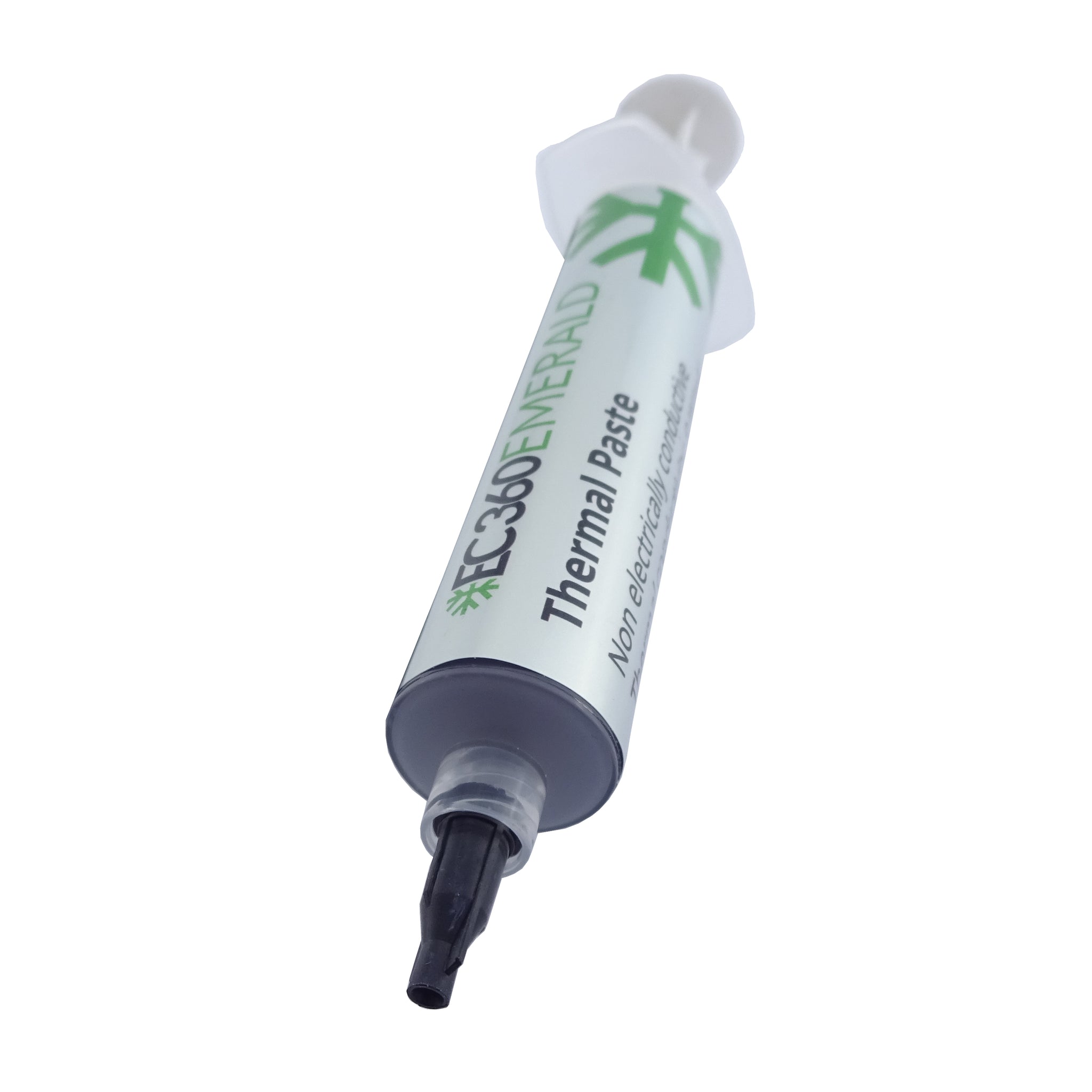

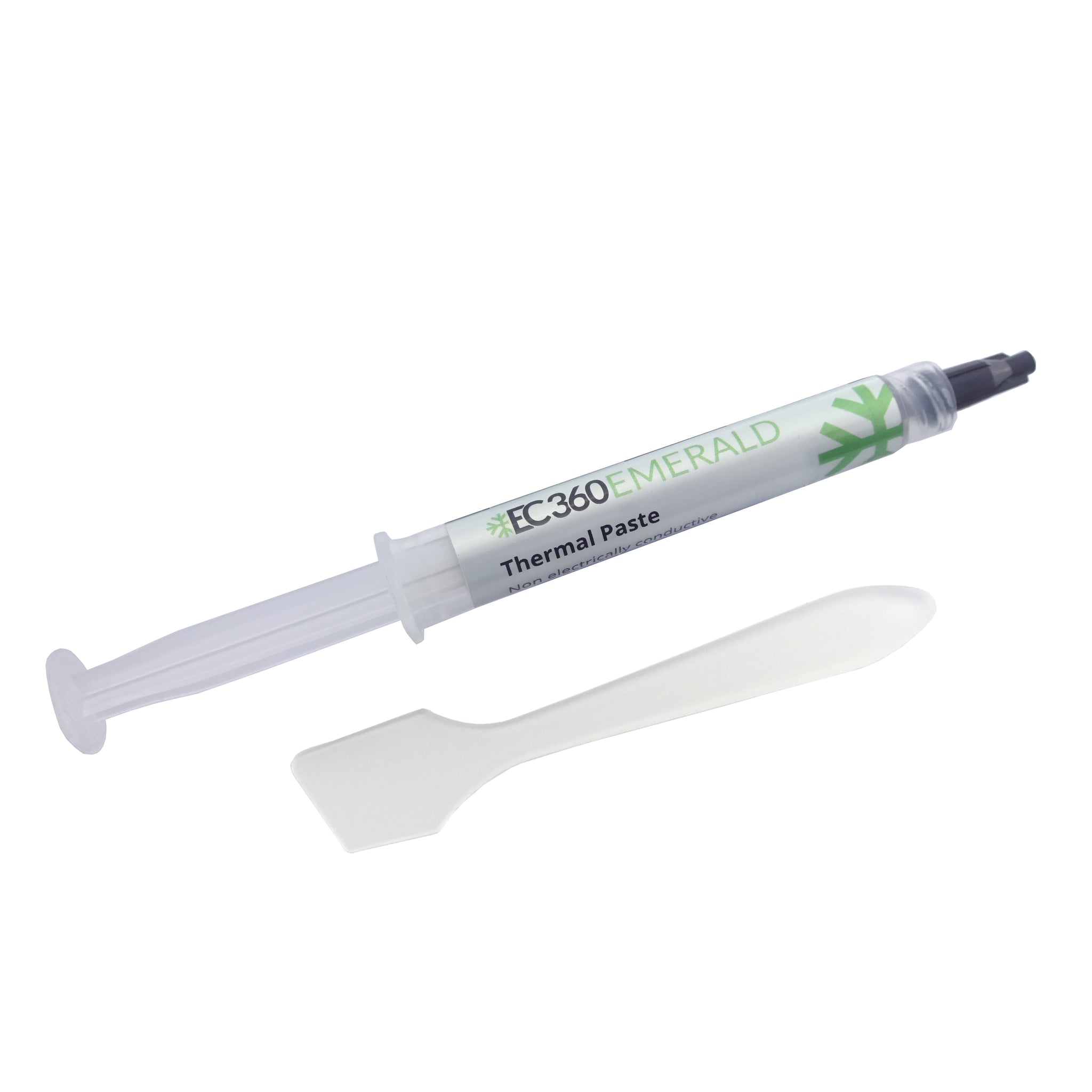

EC360® EMERALD 9W/mK Thermal paste

Designed as an all-round thermal paste with the best possible price-performance ratio, as well as a high thermal conductivity, the EC360® EMERALD series is the ideal thermal paste for gaming PCs and sophisticated industrial cooling systems. A special compound, characterized by outstanding stability and an excellent thermal conductivity of 9 W/mK, make this thermal paste one of the most effective thermal conductors. Its good consistency makes it easy to spread and install. Ideal for use with high-performance CPUs and GPUs. It is long-lasting: low bleed, non-flowing and low evaporation mean it will stay in place and not dry out over time. At the same time, it is not electrically conductive, which allows a safe application.

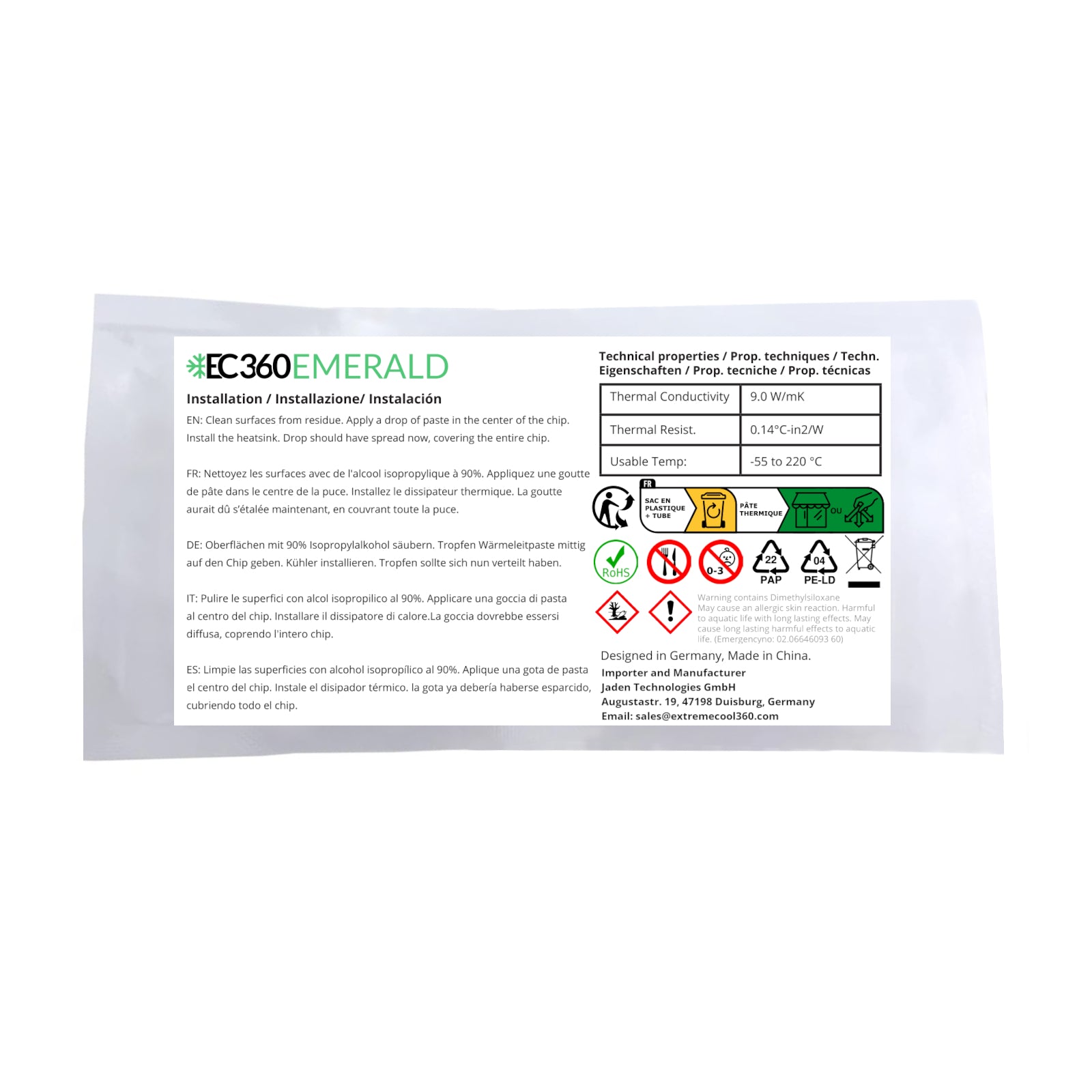

Installation Recommendation:

• Clean surfaces from dirt and other possible residue. If applicable, isopropyl 90% alcohol is recommended to ensure a clean surface.
• Apply the product, for example by applying a drop in the center of the chip.
• Install the heatsink. Ideally the drop should have spread now, covering the entire chip in a thin layer of thermal paste without any air bubbles.
• If the result is not satisfactory apply again in a different quantity until the desired result has been achieved.

Datasheets

• Technical Datasheet (PDF)
• REACH Declaration of Conformity (PDF)
• RohS Declaration of Conformity (PDF)
• Safety Datasheet SDS (PDF)
